Widely Used Ball Mill for Iron Materials

Model NO. : 900&1800

Condition : New

Warranty : 1 Year

After Sale Service : Whole Using Year

Export Markets : Global

High Efficiency : Yes

Transport Package : Standard Container or Negotiable

Specification : to order

Trademark : DingBo

Origin : Shanghai, China

HS Code : 847420000

Supply Ability : 100sets/Month

Type : Ball Mill

Motor Type : AC Motor

Motor Power : 30KW

Rotationl Speed : 23-25r/min

Application : Mine

Materials : Iron

Customization : Available | Customized Request

Place of Origin : China

Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, QC 080000

MOQ : 1

Packaging Details : Normal Packing Ls in Wooden Cases

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment,

Contact Now

Widely Used Ball Mill for Iron Materials

Ball Grinder Mill Introduction:
DingBo series rod and ball mill has certain selective grinding effect in the grinding process because of the grinding medium and ore are line contacted. .It is widely used in fine milling and grinding operation of feldspar, quartz, abrasive, refractory material, cement, steel grit, slag, copper ore, iron ore, gold ore grit and other hard or brittle material.

Advantages Of This Series Milling Machine
1. When the diameter of rod mill is less than 3200mm its conventional configuration is using rolling bearing instead of bearing bush sliding bearing energy saving 10% - 20%;
2. When the diameter of rod mill is more than 2700mm its conventional configuration is using slow driving for maintenance installing liner use;
3. When the diameter of rod mill is less than 1500mm its conventional configuration is monolithic large chassis reducing the installation time and installation requirements;
4. When the power of rod mill is less than 110 KW it uses cage asynchronous motor; When the power of rod mill is more than 110 KW it uses wire wound asynchronous motor; When the power of rod mill is more than 400 KW it can use high pressure (6 KV or 10 KV) asynchronous motor or the TDMK series high voltage (6 KV or 10 KV) synchronous motor;

5. Drum Feeder Spiral Feeder and Joint Feeder are available for meeting different working condition;
6. The gear lubrication mode has grease lubrication thin oil lubrication and automatic oil mist lubrication for meeting different working condition;
7. The bearing lubrication has manual and electric grease lubrication pump to select and it can realize lubrication automation;
8. There are a variety of liner plates type to select. Compared to A series standard type B series energy-saving type can save energy 10% - 20%.

Ball Grinder Mill Technical Specification:

Model	Effective volume (m3)	Max. steel rod load(t)	Capacity (t/h)	Power (kW)	Weight (t)
φ900×1800	1	2.3	2-6	15	4.2
φ900×2100	1.1	2.5	2.2-6.6	18.5	4.9
φ1200×2400	2.4	5.4	4.8-14	30	8.7
φ1200×3000	3	6.8	6-18	37	13
φ1500×3000	4.8	11	9.6-29	75	15
φ1500×4500	7.1	16	14-43	110	16
φ1830×3000	7.1	16	14-43	130	28
φ1830×4500	10.6	24	21-64	155	32
φ2100×3000	9.4	21	19-56	155	42
φ2100×3600	11.3	25	23-68	180	44
φ2100×4000	12.6	28	25-76	210	50
φ2100×4500	14.1	32	28-85	245	52
φ2200×3600	12.5	28	25-75	210	52
φ2200×4500	15.6	35	31-94	245	54
φ2400×3600	15	34	30-90	280	60
φ2400×4500	18.7	42	37-112	320	71
φ2700×3600	18.8	42	38-113	380	82
φ2700×4500	23.5	53	47-141	480	90
φ3200×4500	33.5	75	67-201	800	137
φ3600×4500	42.8	96	86-257	1120	200

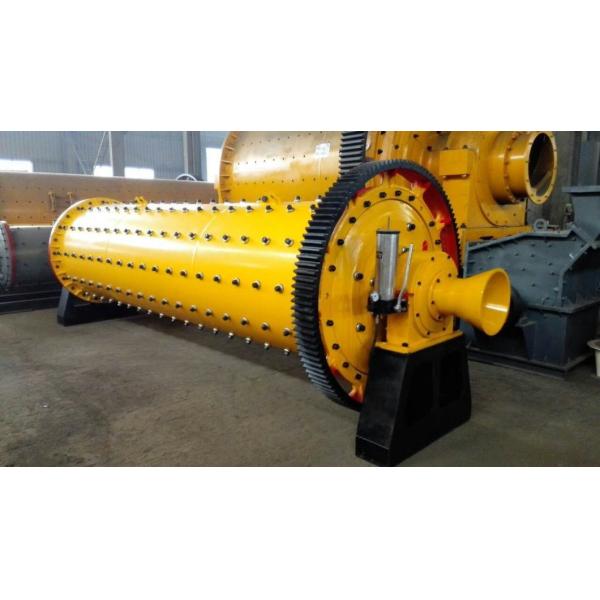

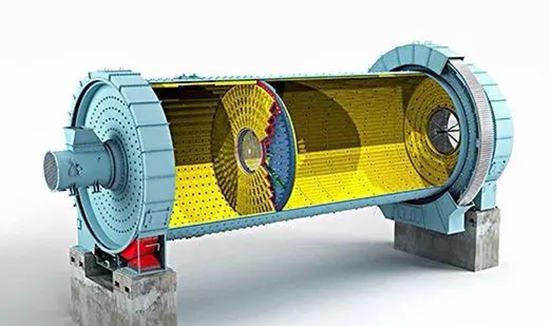

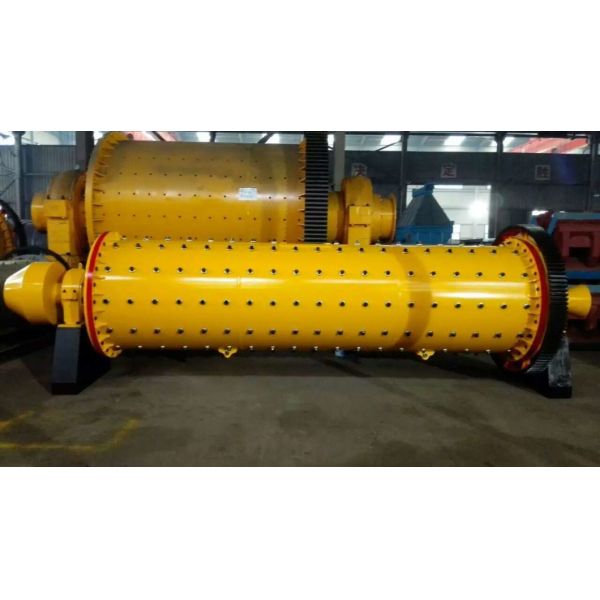

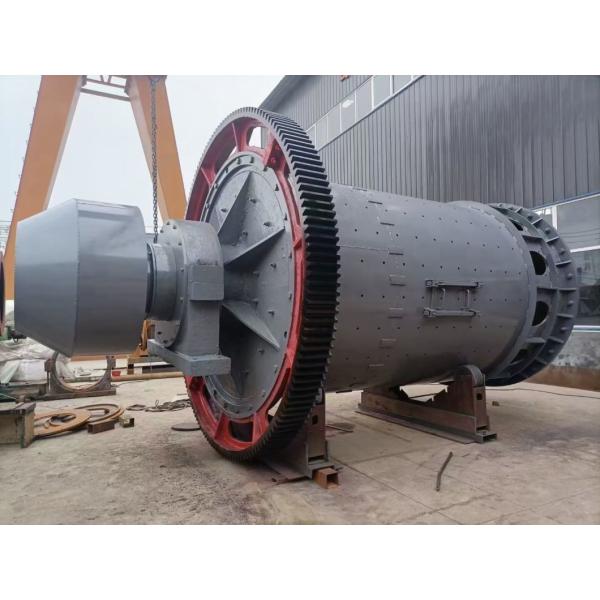

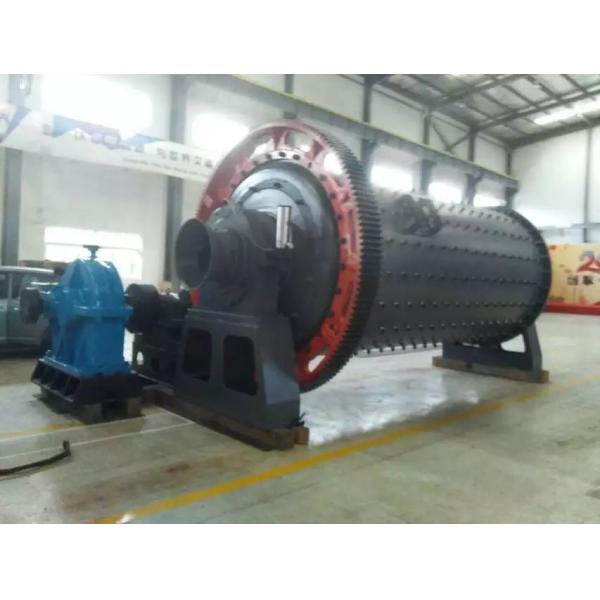

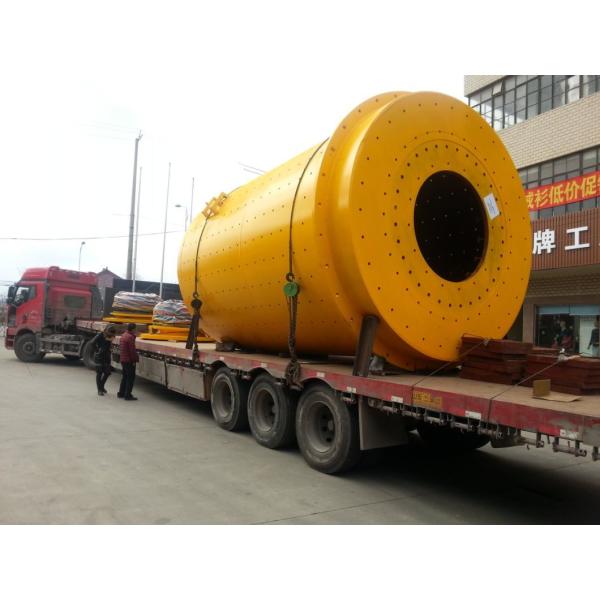

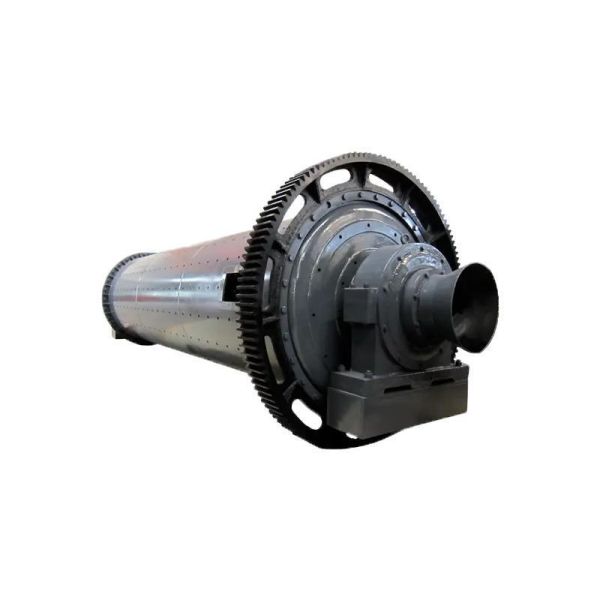

Widely Used Ball Mill for Iron Materials Images
